500KW Weichai Boduan Diesel Generator Set Your Go-To Backup Power Supply for Community

Name: 500KW Weichai Boduan Diesel Generator Set Your GoTo Backup Power Supply for Community
Brand: weichai boduan
Price: 37 USD

Quality 500KW Weichai Boduan Diesel Generator Set Your Go-To Backup Power Supply for Community wholesale

Warranty : 3months-1year

Place of Origin : China

Brand Name : weichai boduan

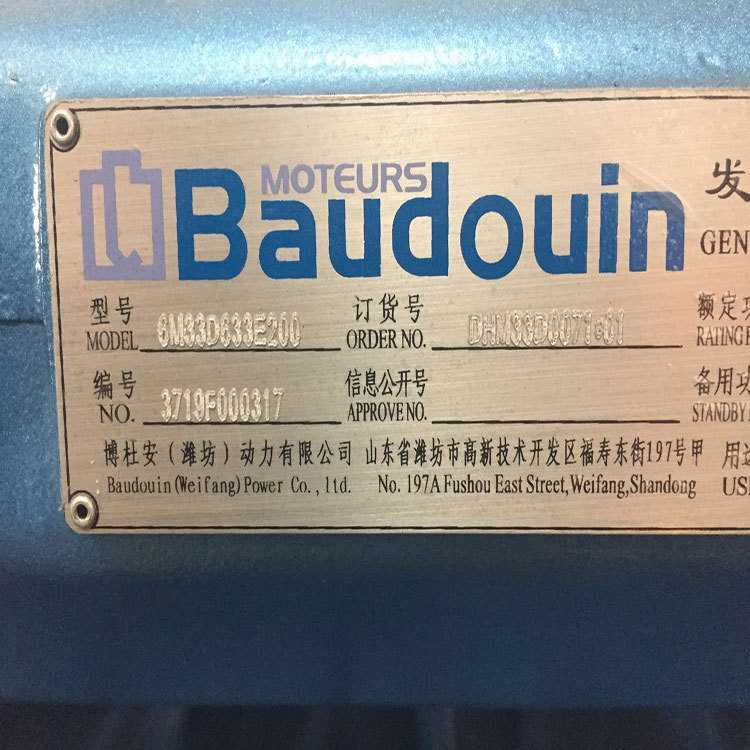

Model Number : 6M33D633E200

Rated Voltage : 230V, 400V

Rated Current : 900A

Speed : 1500RPM, 1800RPM

Frequency : 50/60HZ

Starting system : Auto Start

Type : Trailer Type, Silent type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type, Silent

Weight : 2090kg

Cooling System Type : Water cooling system

Alternator : Marathon

Options : Automatic Transfer Switch

Engine type : Direction Injection

Product Name : Silent speaker unit

Color : Customers' Request

Phase : 1 Phase/3 Phase

ControllerControl panel : Smargen

Rated Power : 500KW

Packaging Details : Box packaging

Price : $37,931.00/units >=1 units

MOQ : 1 unit

Contact Now

Details Images

500KW Weichai Boduan diesel generator set

550KW Boduan diesel generator set parameters 1、 Technical specifications (1) Model: 550GF Common power (KW): 550 Backup power (KW): 605 Frequency: 50Hz Output voltage: 400/230V Speed: 1500rpm Power factor: COS Φ= 0.8 (lag) Fuel consumption (g/Kw * h): 210 (recommended to use No. 0 diesel) Maximum output current (A): 990 Number of phases/lines: three-phase four wire Noise LP7m: 105dB External dimensions (mm): 3100 * 1300 * 1650 (external dimensions are subject to the actual product) Weight: 3600Kg (weight based on actual product) (2) Diesel engine: Brand: Boduan Origin: Boduan (Weifang) Power Co., Ltd Model: 6M33D605E200 Cooling start: closed water cooling Starting method: 24V DC power start Number of cylinders: 6 Displacement: 19.6L Compression ratio: 15:1 Fuel supply method: direct injection Air intake method: turbocharging and intercooling Cylinder arrangement: inline Intercooling method: water cooling Fuel model: Domestic 0 # light diesel Speed regulation method: electronic speed regulation Diesel engine coolant capacity: 41.63L Diesel oil pan capacity: 60.5L Oil model: WD/40 Cylinder diameter/stroke: 150/185mm External dimensions (mm): 2254 * 1138 * 1528 Net weight of diesel engine (KG): 2090 (3) Generator: Brand: Shanghai Stanford Origin: Jiangsu Model: STF-500 Material: Pure copper Insulation level: H Voltage control mode: AVR Voltage: ≤ 4% Rated voltage (V): 400/230 Protection level: IP23 Frequency: 50Hz Phase number/wiring: three-phase four wire/Y-shaped winding connection Frequency adjustment rate (%): ≤ ± 0.5 (steady-state)+10~-7 (transient) Voltage adjustment rate (%): ≤ ± 0.5 (steady-state)+20~-15 (transient) Frequency fluctuation rate (%): ≤ ± 0.5 Voltage fluctuation rate (%): ≤ ± 0.5
